Gantry Crane
Gantry Crane
Manufacturer
EME
Model #
16500R

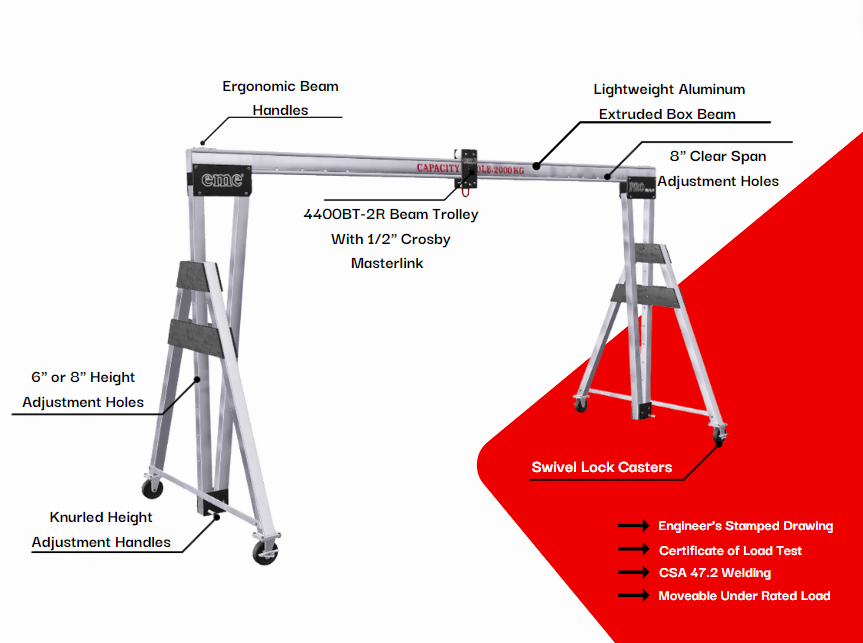

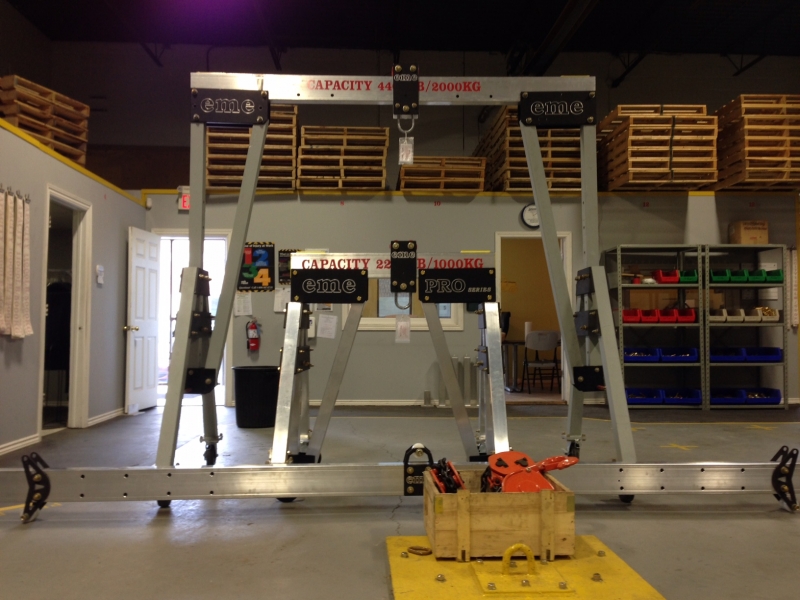

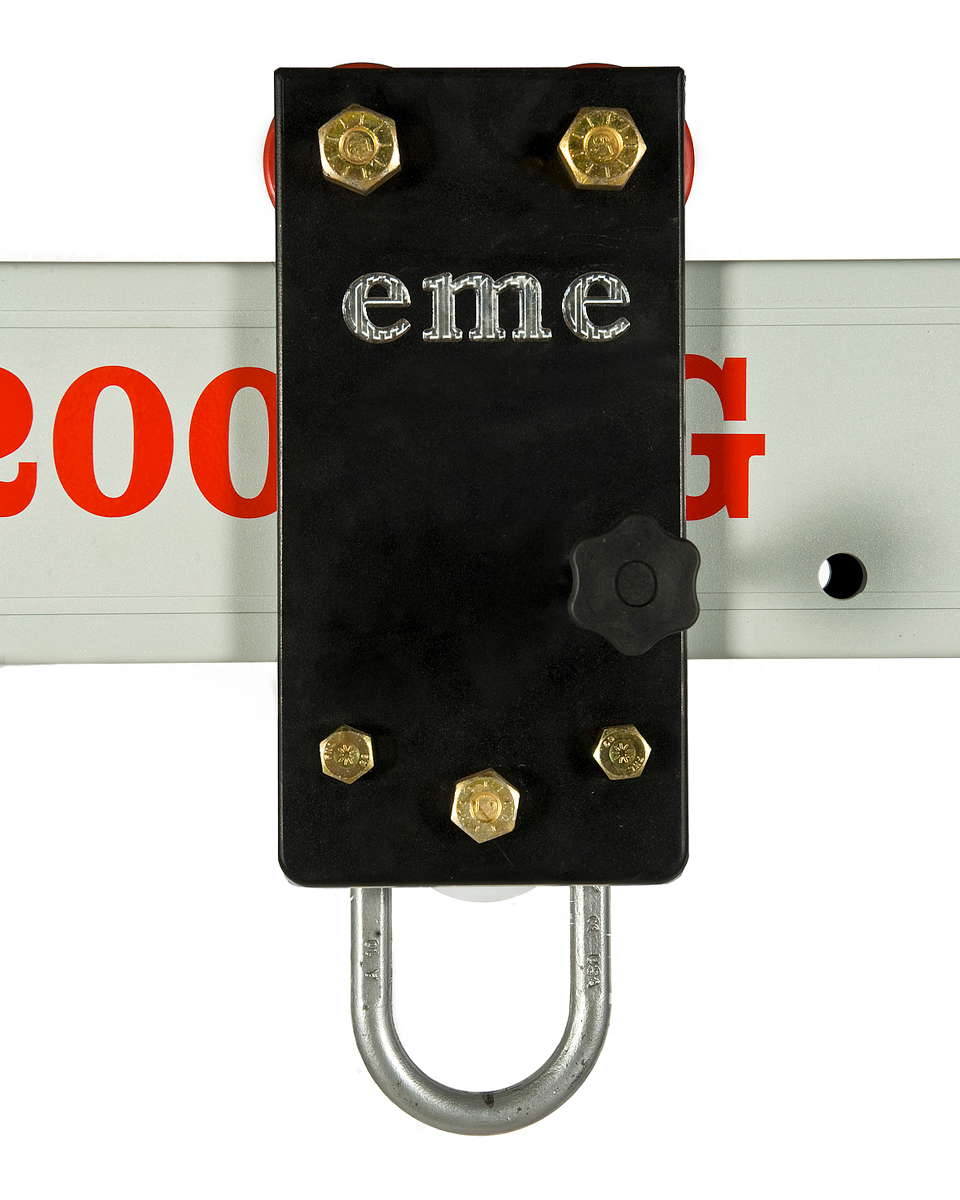

The eme 16500 aluminum gantry crane has a 16,500 lb (7.5T) capacity and adjustable beam height and clear span. Designed for mobility, it can be moved under load and easily transported. Featuring a locking surround-beam trolley and four-position locking casters, it ensures stability and ease of use. Built with lightweight aluminum, it meets CSA 47.2 welding standards and is load-tested to 125% before shipment.
Request A Quote

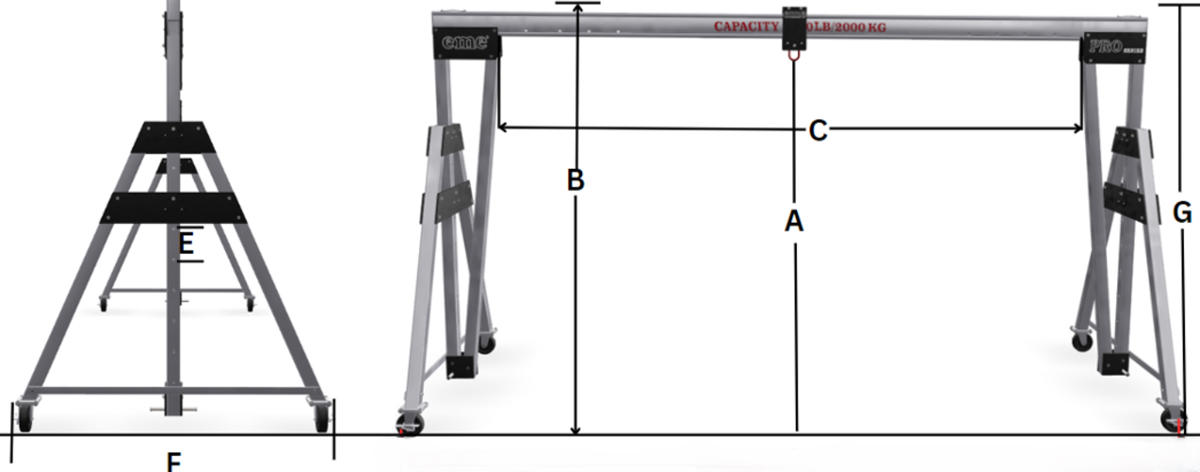

Specifications
Caster Size
81 IN
Leg Span
12 FT
Load Capacity
16,500 LBS
Min-Max Assembled Height
131-173 IN
Max Height To Lift Ring
101-143 IN
Standard Beam Length Options
15 FT
Total Assembled Weight
945 LBS
