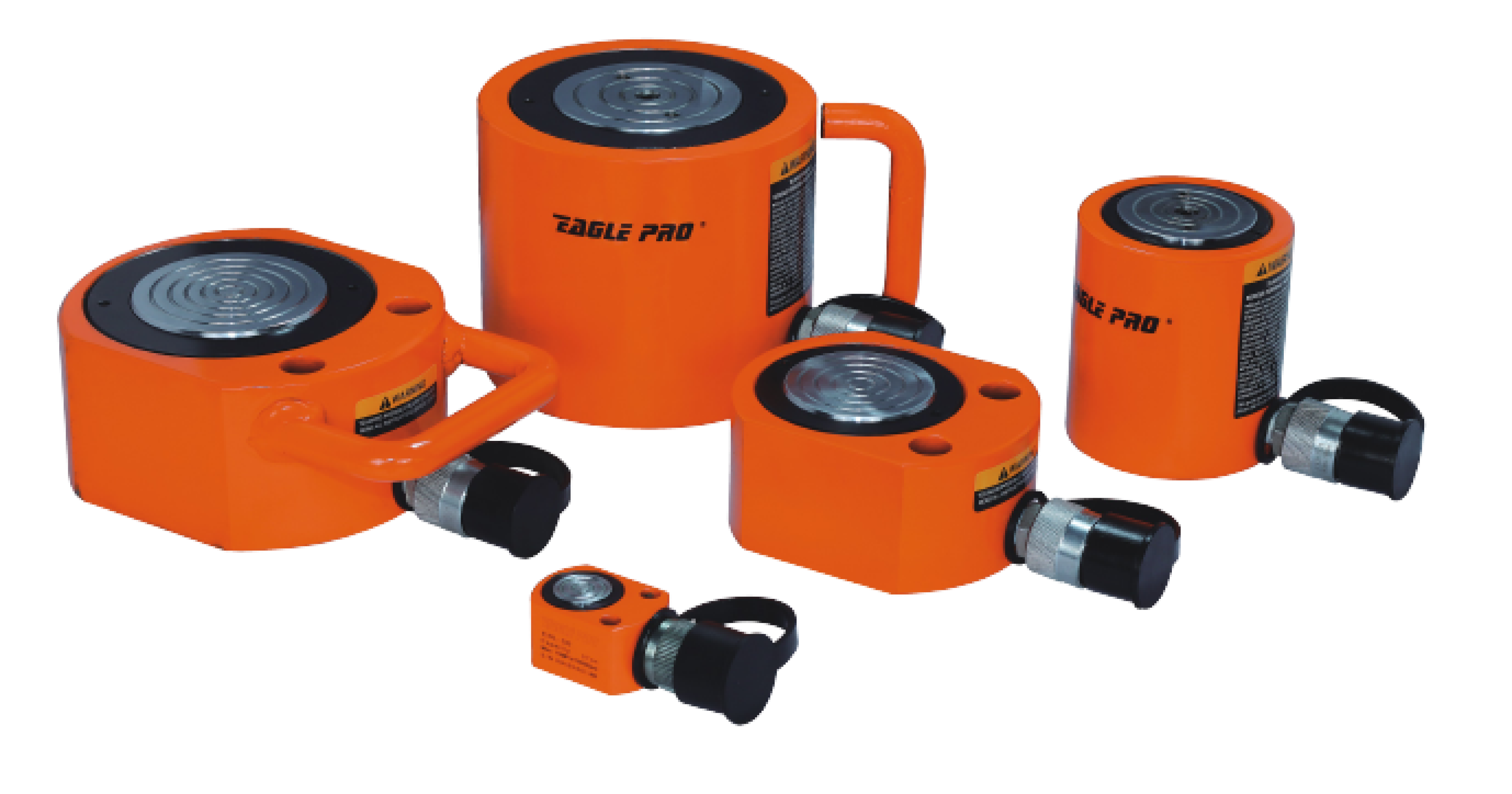

Low Profile, and Pancake Style

https://pimdata-dev-cbd9b4bahucjbdcw.a02.azurefd.net/ber-pim/jobsite/files/ESL-750/jei_Main_Image/ESL-Series-Family-Image (7).png

Low Profile, and Pancake Style

Manufacturer
Eagle Pro
Model #
ESL-750
The ESL Series Low-Profile and Pancake Cylinders are designed for applications requiring high force in confined spaces. Their compact design ensures efficient lifting and pushing in tight areas. Built with a durable steel construction, these single-acting cylinders provide reliable performance in industrial and heavy-duty settings. Ideal for maintenance, positioning, and pressing tasks.
Request A Quote
Specifications
Collapsed Height
3.11 IN
Load Capacity
75 TON
Stroke
0.63 IN
Weight
25.10 LBS
Width
6.50 IN X 5.47 IN



Request A Quote
