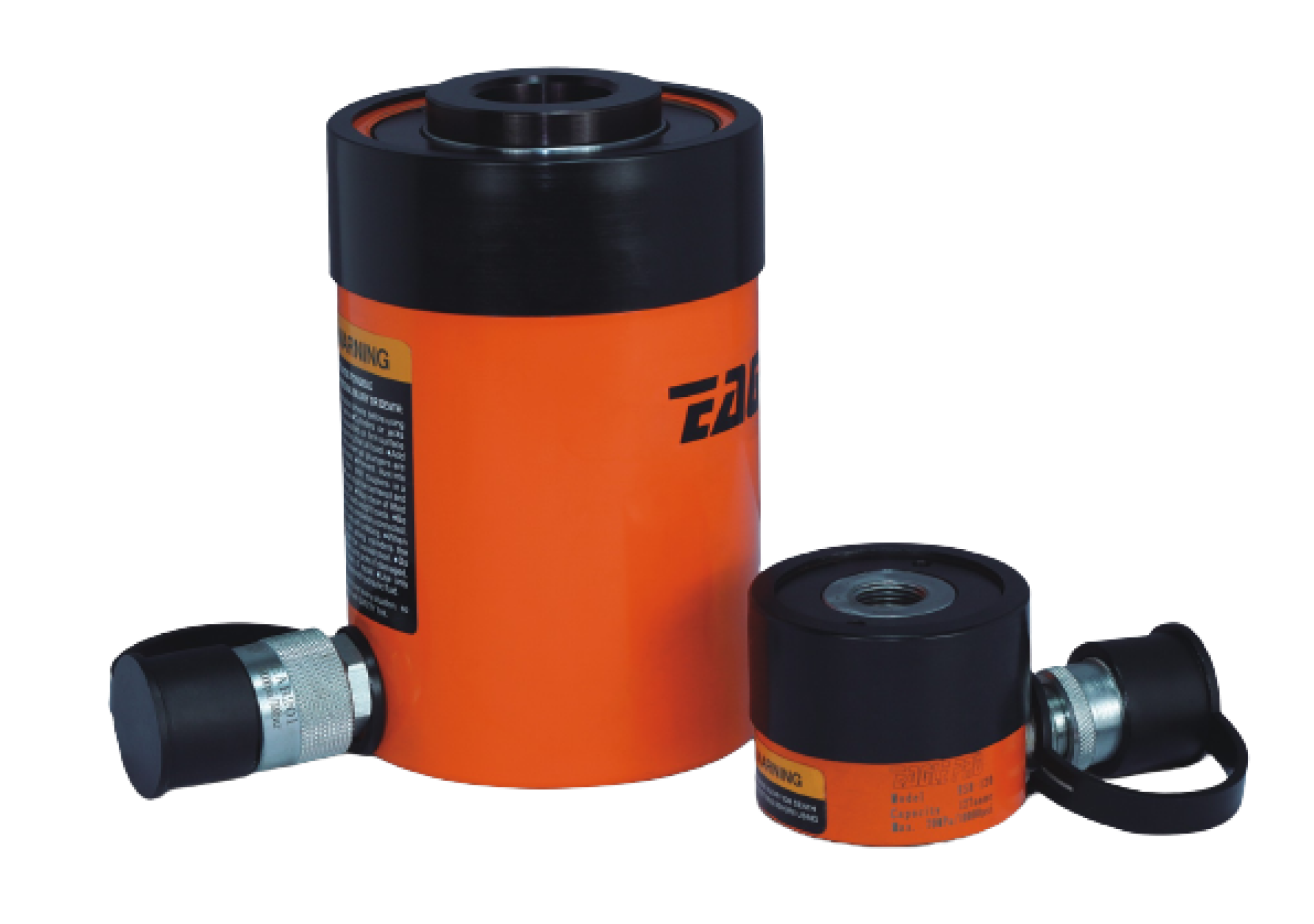

Single Acting, Hollow Piston
Single Acting, Hollow Piston
Manufacturer
Eagle Pro
Model #
ESH-603
The ESH Series Single Acting Hollow Piston Cylinders are designed for high-force pulling and pushing applications. Featuring a durable steel body and a hollow piston design, they allow for versatile use with threaded rods or cables. Ideal for tensioning, pulling, and lifting operations, these cylinders provide reliable performance in demanding industrial environments.
Request A Quote
Specifications
Collapsed Height
9.69 IN
Load Capacity
60 TON
Stroke
2.99 IN
Weight
60.28 LBS
Width
6.26 IN
